Dragon icon DYNASTY PPC

A new dynasty in PPC has begun with EBN Dynasty The era of legacy design rules in PPC is at an end with the birth of the EBN Dynasty. Revolution cannot simply explain the new order Dynasty brings to the market, the evolution against the industry standards starts here.

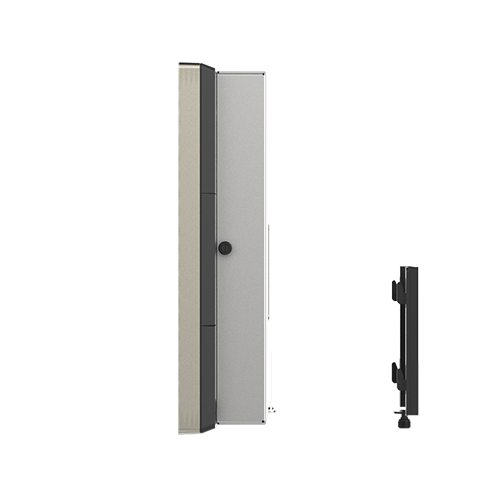

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Key Features

System reliability

  • No Electrolytic capacitors, but Solid capacitors.
  • High ESD immunity up to 15KV.
  • Spring-forced thermal contact ensure the lowest resistance and prevent from motherboard warpage.
  • IP-65 fulfilled by tight sealing between die-casting cover and cover lens.
  • Fully WIN-TEL compatible, and Linux supported.
  • Intel Braswell Pentium N3700 provides 2 times 3D performance than Bay Trail J-1900.



Specifications

Main Board
Main Board Name X7E
CPU Intel® Braswell SoC processor: Pentium® N3700 (14nm, 2M Cache, up to 2.40 GHz) Pentium® N3710 (14nm, 2M Cache, up to 2.56 GHz) Celeron® Processor N3160 (2M Cache, up to 2.24 GHz)
System Memory SO-DIMM DDR3L 1333/1600MHz x 1, Max. 8GB
Graphic Intel® HD Graphics
BIOS Phoenix uEFI BIOS
O.S. Support Windows Embedded POSReady 7 (64bit only) Windows 7 Professional for Embedded Systems (64bit only) Windows Embedded 8 Industry (64bit only) Linux kernel 3.0+ & associated distributions Windows 10
EC EBN-specified embedded controller
Cooling Solution Fanless conductive thermal module
Display
Size 15" 4:3 Industrial grade panel (Option 15.6” 16:9)
Panel backlight type LED with 50K hours of life
Brightness 250 nits
Resolution 1024x 768 (1366 x 768 optional for 15.6“ model)
Touch Screen P-cap multitouch with 7H hardness cover lens
Front panel type True flat bezel free with IP65 compliant
Tilt Angle 20°~60°
Storage Device
Interface SATA-3 (6.0Gb/s) x 2
HDD or SSD mSATA slot x 1 (for SSD) 2.5” HDD or SSD (Option) x 1
Indicators
- Power
Wireless Connectivities
Dual Band WiFi & Bluetooth Intel AC3160 802.11 ac/a/b/g/n Wireless LAN with BT4.0 combo, half size mini PCIE type (Option)
I/O Ports
Serial Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485 selectable by BIOS, RJ-50 with convert to DB-9 cable COM 4: RS-232, RJ-50 with convert to DB-9 cable COM 5: RS-232, Internal reserved for 2x20 VFD Customer Display COM 6: RS-232, Internal reserved
USB USB 3.0 x 2 USB 2.0 x 2
Cash Drawer RJ-12 x 1, support 12V / 24V DC cash drawer
Audio 2W Speaker x 1
DC-in 19~24V DC input, Radio jack x 1
Giga LAN Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
PUH (Power USB Hub) module USB 2.0 x 1 (24V) USB 2.0 x 2 (12V) with External 120W 19V AC-DC Adapter
Display Port mini DP x 1 Option: Cable @ DP-to-VGA, DP-to-DVI, DP-to-HDMI
Physical Dimensions
Dimension ( WxDxH ) 36 x 5.2 x 28.5 cm (14 x 2 x 12 inch)
Net Weight / Gross Weight 4.6 kg ,10.2 lb / 5.6kg, 12.4 lb
Others
Mounting mechanism Support VESA Mount Panel-mounting and Rear-mounting bracket
Power Supply External 65W 19V DC Option: External 120W 19V DC
Color Titanium-Black, Titanium-White; Gold-Black, Gold-white, Titanium-colors With standard powdered painting finishing, optional in electroplated with hair-lined finishing
Material Aluminum-Zinc Alloy
Certifications CE / FCC / WEEE / RoHS / VCCI / CCC
Ingress Protection IP65 @ front panel
Environmental Conditions
Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Operating Temperature With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow With standard system configurations: 0 ~ 50°C (-32 ~ 122°F) with 0.7m/s air flow
Relative Humidity 95% @ 40°C (104°F), non-condensing

Ordering Information

Main Unit Ordering Information
Part No. Description
DNPPC70P-5BT-N3160 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Celeron® Processor N3160 2.24 GHz, White / Titanium
DNPPC70P-5WT-N3160 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Celeron® Processor N3160 2.24 GHz, White / Titanium
DNPPC70P-5BT-N3700 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3700 2.40 GHz, Black / Titanium
DNPPC70P-5WT-N3700 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3700 2.40 GHz, White / Titanium
DNPPC70P-5BT-N3710 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3710 2.56 GHz, Black / Titanium
DNPPC70P-5WT-N3710 Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3710 2.56 GHz, White / Titanium
