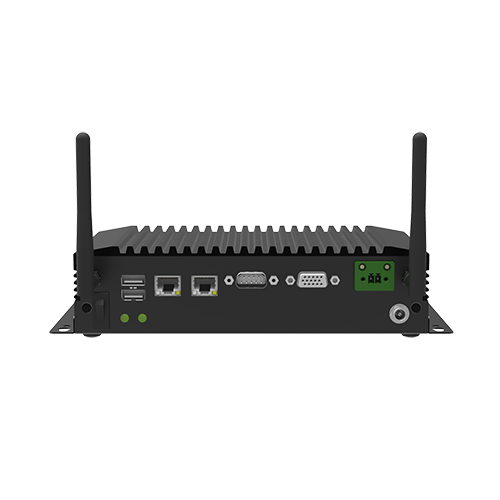

Dragon icon IoT BoxPC BPC10

Bay Trail Embedded IoT Box PC Fanless Embedded IoT Box PC, robust housing with Intel® Celeron®J1900, ULV processor for the space-limited space applications.

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Key Features

  • Support industry I/O port
  • Support Linux kernel 3.0 / Windows7 / Windows10
  • Internal mini-PCIe socket support optional variety of Wi-Fi / 3G connectivity

Specifications

Main Board
CPU Intel® Celeron®J1900, Dual-core, clock speed 2.42G, TDP 10W
System Memory Support DDR3L 1333 MHz, 1* SO-DIMM Slot, Up to 8GB
BIOS AMI UEFI BIOS
O.S. Support - Windows Embedded POSReady 7 (64bit only) - Windows 7 Professional for Embedded System (64bit only) - Windows Embedded 8 Industry (64bit only) - Windows 10 - Linux kernel 3.0+ & associated distributions
Cooling Solution Fanless
Storage Device
HDD or SSD 2.5" HDD or 2.5” SSD x 1 (SATA 3.0)
mSATA SSD mSATA SSD from miniPCIe socket x 1
I/O Ports
USB Front:USB2.0 x 4 Rear:USB3.0 x 1, USB 2.0 x 1
Audio Front:MIC-in x 1, Line-out x 1
DC-in Rear:2-pins 12V DC input with lock connector x 1
LAN Rear:Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
Display Port Rear:HDMI x 1, VGA x 1
LED Rear:Power status x 1, Storage x 1
COM1 Front:DB9 for RS232 x 1
COM2 Front:DB9 for RS485 x 1
Remote Power Switch Rear:Remote power on/off switch x 1
Physical Dimensions
Dimension ( WxDxH ) 20 x 5 x 12 cm ( 7.9 x 2 x 4.7 inch)
Weight 1.7 kg
Others
Mounting mechanism Support wall mount kit
Communication Wireless LAN module, mini PCIe type (Optional)
Expansion Slot Mini PCIe x 1
Color Black
Material Aluminum / SECC
Certifications CE / FCC / VCCI / CB
Environmental Conditions
Storage Temperature -20~ 70°C
Humidity 95% @ 40°C (non-condensing)
Operating Temperature Ambient with air flow: -20°C to 60°C
