Dragon icon BPC08W

Easy access switch to remote equipment. Small form-factor PC box to connect triple displays. Multi-Powered input/output ports for more robust computing operations. Wide temperature range for harsh environments. Embedded IoT Box PC Fan-less Box PC. Large size heat sink for better cooling. Robust housing. Dual Channel memory for better expansion and performance.

  • Original
  • Original
  • Original
  • Original

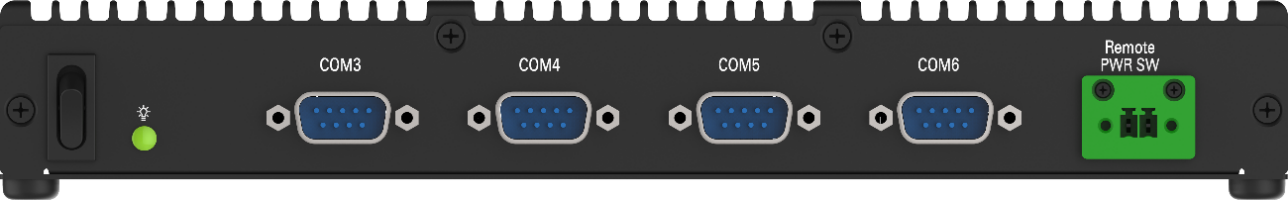

  • 6pcs COM ports for more extended functions

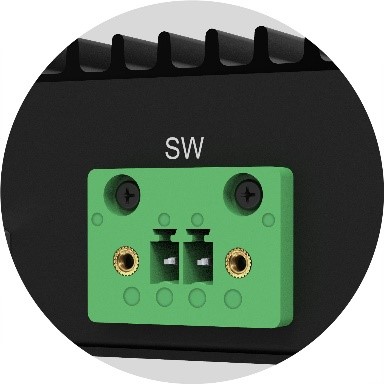

  • Remote PWR Switch

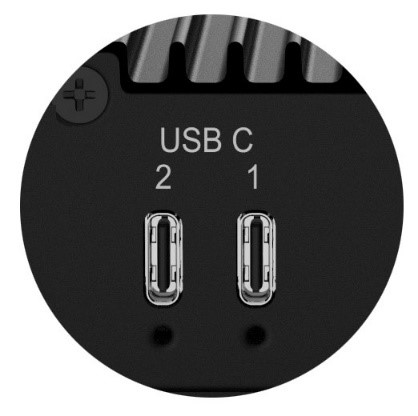

  • Two USB C DP Alternate Mode and PD


Main Board
CPU FCBGA1493 x6413E (4C/4T 2.0GHz)
O.S. Support Microsoft Window 10, 11, Linux 4.0 Kernel such as ubuntu 20.04.5
Memory SO-DIMM 2x DDR4, Up to 32GB
Interface C/D / DIO: C/D RJ-12 Type, support 12V or Bypass DC-IN 12~24 Voltage by Jumper Audio Connector:1 x 3.5 mm headphone and microphone combo jack TPM2.0 (Optional) Antenna hole:2 x Antenna holes for Wi-Fi, Bluetooth or 4G/5G LTE VESA Holes:Support 75mm x 75mm
Storage Device
mSATA SSD 1x m.2 2280 M-key slot
Wireless Connectivities
- Wi-Fi / Bluetooth Optional 802.11 ac/a/b/g/n Wireless module (m.2 2230) 2 x Build-in antenna hole for Wi-Fi / Bluetooth

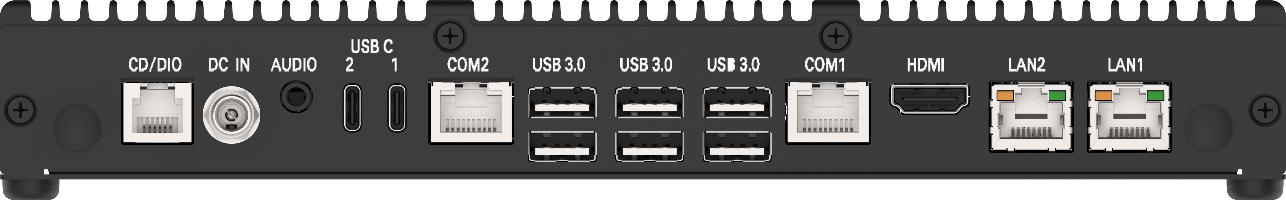

I/O Ports
USB 2 x Type C with Alternate mode (DP) and PD(PD is option support total max 60W) 6 x USB3.0
DC-in DC 12~24V and support screw lockable 5.5 x 2.5mm DC Plug
LAN 2 x 2.5G LAN (RJ-45) Intel i225V
Display Port 1 x HDMI and 2x USB Type-C Alternate mode (up to Triple Display)
LED Power indicator (Green)
COM1 1 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS
COM2 1 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS
COM 3 option 1 x RS232 (DB9) or GPIO (DB9)
Remote Power Switch Connector for extend switch
COM 4 option 1 x RS232 (DB9) or GPIO (DB9)
COM 5 option 1 x RS232 (DB9) or GPIO (DB9)
COM 6 option 1 x RS232 (DB9) or GPIO (DB9)
Power Switch 1 x Power On/Off rocker switch
Physical Dimensions

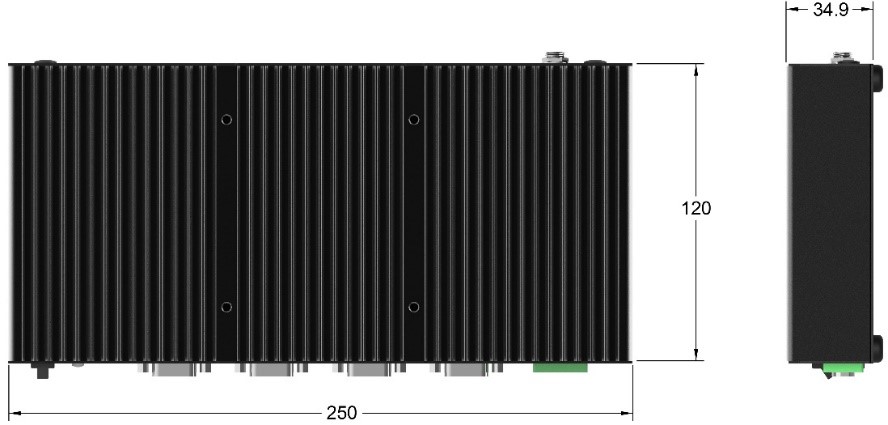

Dimension ( WxDxH ) 250 (W) x 34.9 (H) x 120 (D) mm 9.8432 (W) x 1.374 (H) x 4.724 (D) inch
Weight G.W. 2.2 Kg / 4.85 pounds N.W 1.78 Kg / 3.924 pounds
Environmental Conditions
Storage Temperature -40~85℃( -40~185℉)
Humidity 5~95%@40℃
Operating Temperature -30~75℃( -22~167℉)
Shock Protection With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis)
Specification Accessory (Option) Optional 60W,90W,130W Optional RJ50 to DB9 convert cable (COM Port) Wall mount, rack mount, din rail
