Dragon icon BPC07W
Compare List (0)
Inquiry List (0)

Embedded loT Box PC Embedded IoT Box PC Fan-less Box PC, large size heat sink, robust housing with Intel® Gemini lake refresh CPU, comes with 8GB of DDR4 memory support. Versatile I/O connectivity is provided by 6x RS232, 6x USB 3.0, 2x USB C, 1x GbE, while expansion is supplied by m.2 2230 mini-PCIe slots for optional variety of Wi-Fi / 3G/4G LTE connections. Supported operating systems include Windows 10 / 11 / Linux kernel 4.0+ & associated distributions.

  • Original
  • Original
  • Original
  • Original
Download
Add to Compare
Inquire

Features

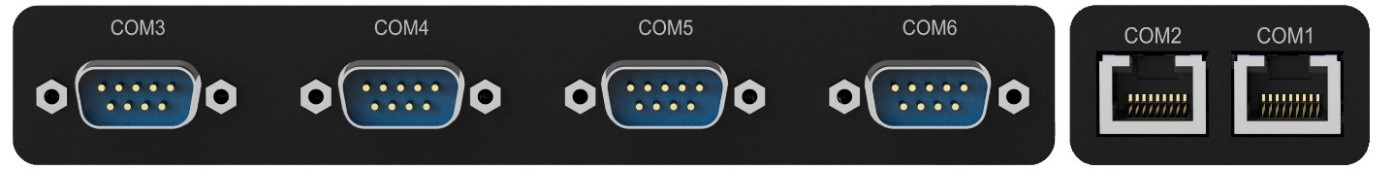

  • 6pcs COM ports for more extended functions
  • Remote PWR Switch

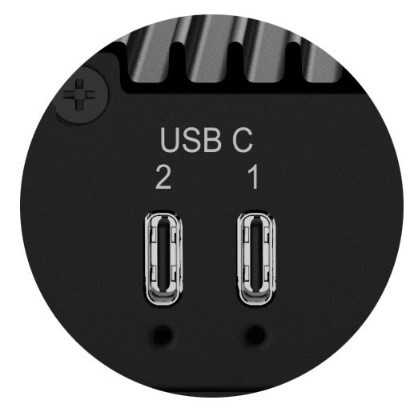

  • Two USB C DP Alternate Mode and PD

Specifications

Main Board
CPU FCBGA 1090 J4125 (4C/4T 2.0GHz) J6412 (Developing) Alder Lake N (Developing)
O.S. Support Microsoft Window 10, 11 , Linux 4.0 Kernel such as ubuntu 20.04.5
Cooling Solution Fanless
Memory 1x DDR4, Up to 8GB
Interface C/D / DIO: C/D RJ-12 Type, support 12V or Bypass DC-IN 12~20 Voltage by Jumper Antenna hole: 2 x Antenna holes for Wi-Fi , Bluetooth or 3G/4G LTE VESA Holes : Support 75mm x 75mm
Storage Device
mSATA SSD 1x m.2 2280 M-key slot

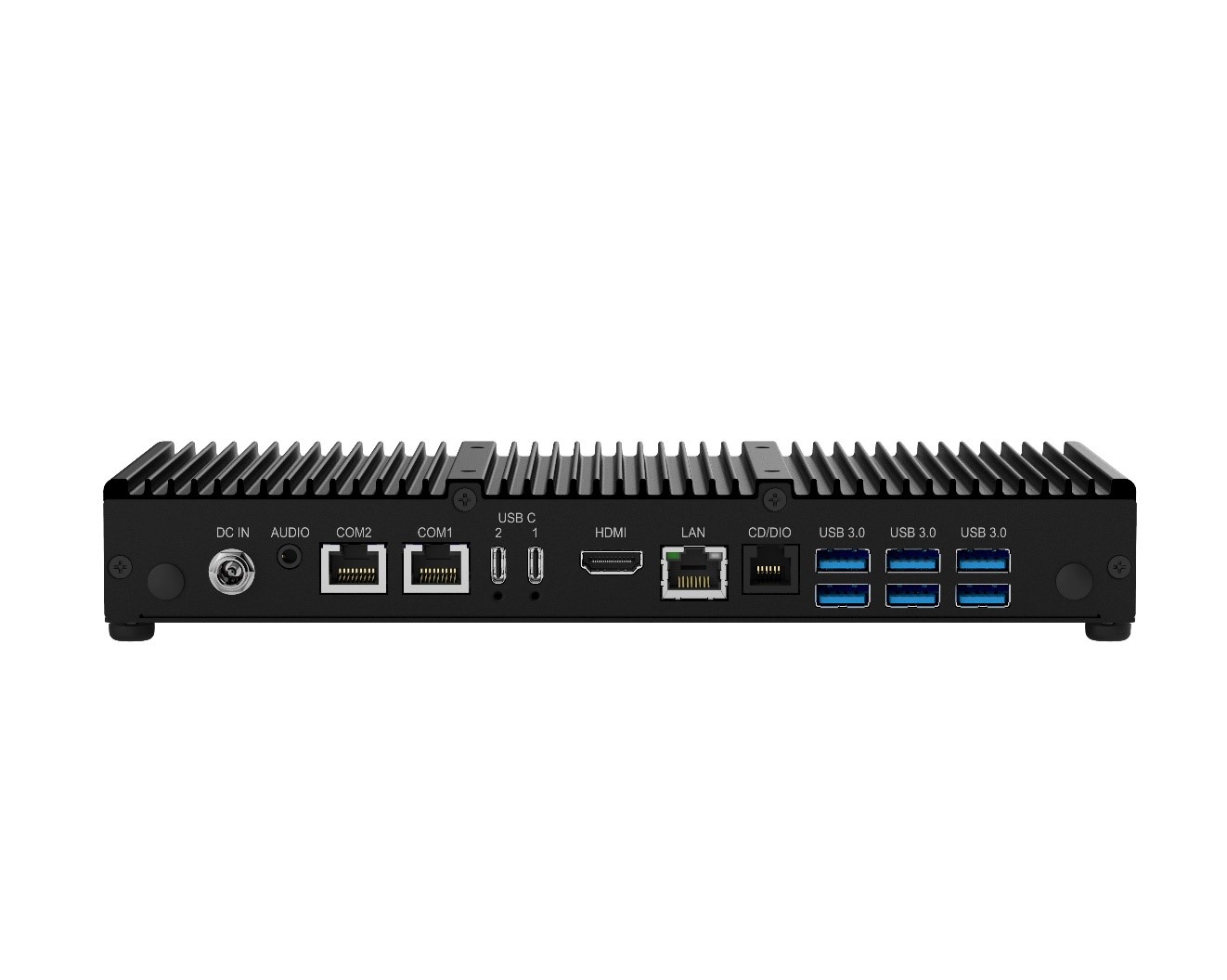

I/O Ports
USB 6x USB3.0 2x USB Type-C with PD (PD is option support total max 60W)
DC-in DC 12~20V and support screw lockable 5.5 x 2.5mm DC Plug
LAN 1x Giga LAN
Display Port 1x HDMI and 2x USB Type-C Alternate mode (up to Triple Display )
LED Power indicator (Green)
COM1 RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and
COM2 RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS

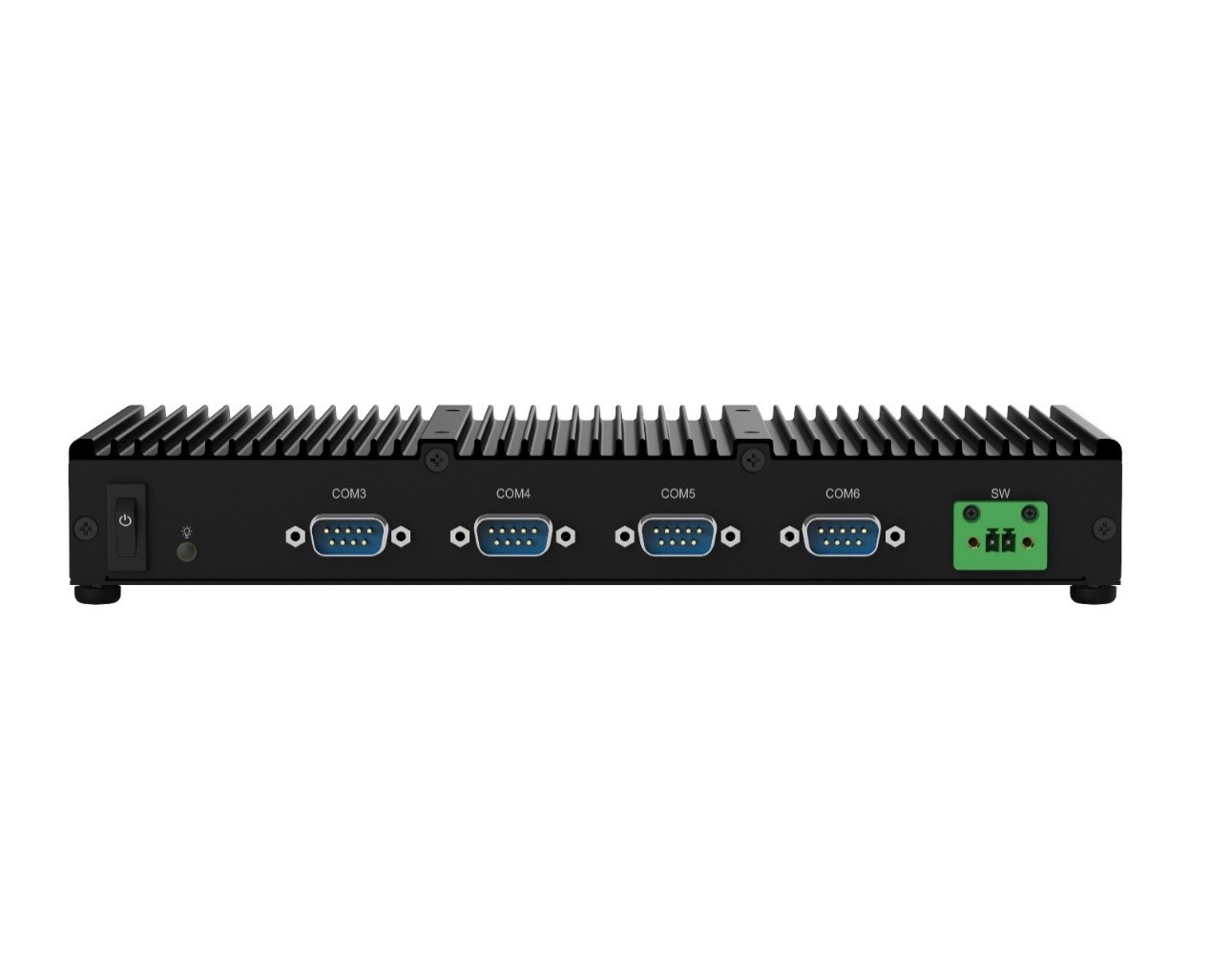

COM 3 option RS232 (DB9) or GPIO (DB9)

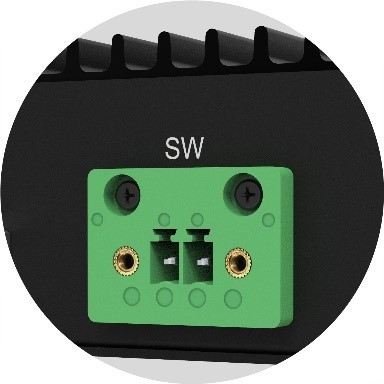

Remote Power Switch Connector for extend switch
COM 4 option RS232 (DB9) or GPIO (DB9)
COM 5 option RS232 (DB9) or GPIO (DB9)
COM 6 option RS232 (DB9) or GPIO (DB9)
Power Switch 1x Power On/Off rocker switch
Physical Dimensions

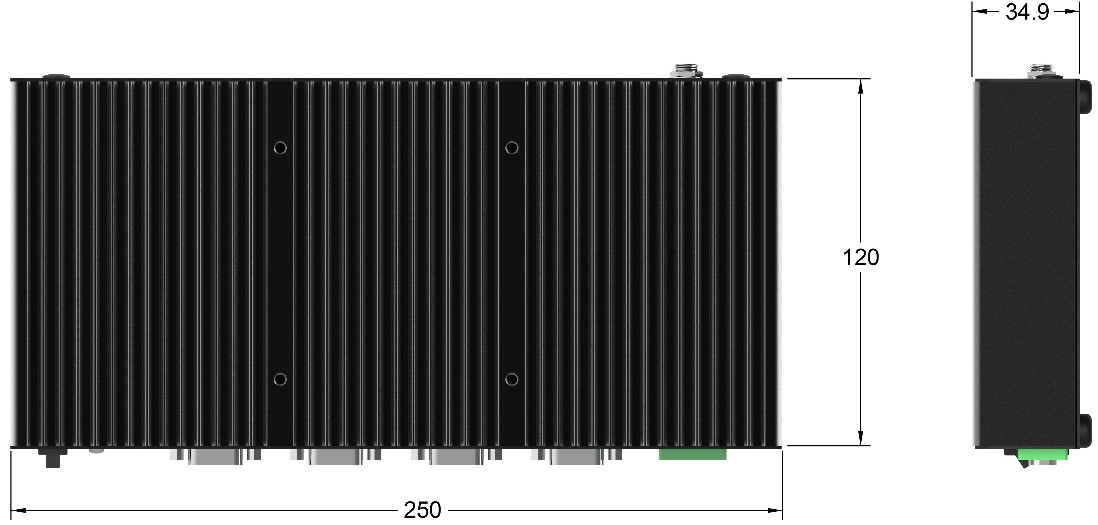

Dimension ( WxDxH ) 250 x 120 x 34.9 mm
Environmental Conditions
Storage Temperature -20~80℃
Operating Temperature 0~60℃
Relative Humidity 5~95%@40℃
Shock Protection With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis)
Option
Interface TPM : TPM2.0
Specification RJ50 to DB9 cable
Mounting Mechanism Wall mount, rack mount, din rail
Power Adapter 60W, 65W,90W,130W AC Adaptor
